Kitset Plan 01

Kitset 50

$43,135 + GST

$862 per m²

One bedroom, one bathroom and open plan living in a simple rectangle. A first build, a minor dwelling or a rural second dwelling.

Enquire now

Plan set

50.04 M²

FLOOR AREA

8.34 x 6.0 M

DIMENSIONS

1

BEDROOMS

1

BATHROOMS

About the Kitset 50

A simple place to start

One bedroom, one bathroom and open plan living in a simple rectangle. A first build, a minor dwelling or a rural second dwelling.

Bedroom with robe Bathroom Kitchen Living & lounge Storage cupboard

From 8 October 2026, the Kitset 50 can be built without a building consent under the government's granny flat exemption, as long as your site meets its rules. You will still need a designer, Licensed Building Practitioners and a PIM from your council.

Floor plan & elevations

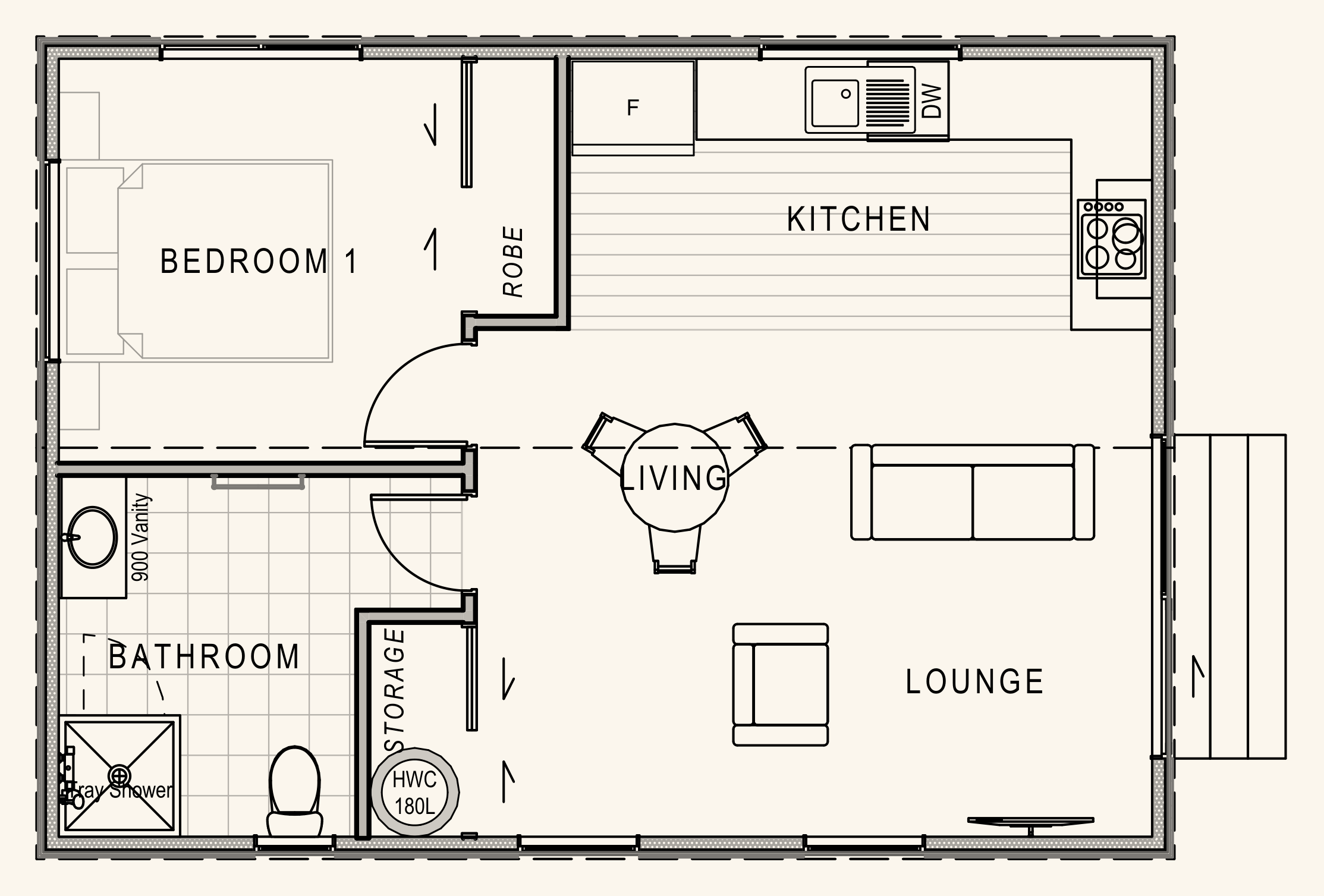

Kitset 50 floor plan

Concept design shown. Final floor plan and elevations to be confirmed.

Overall 8.34 x 6.0 m · Floor area 50.04 m² over SIP framing

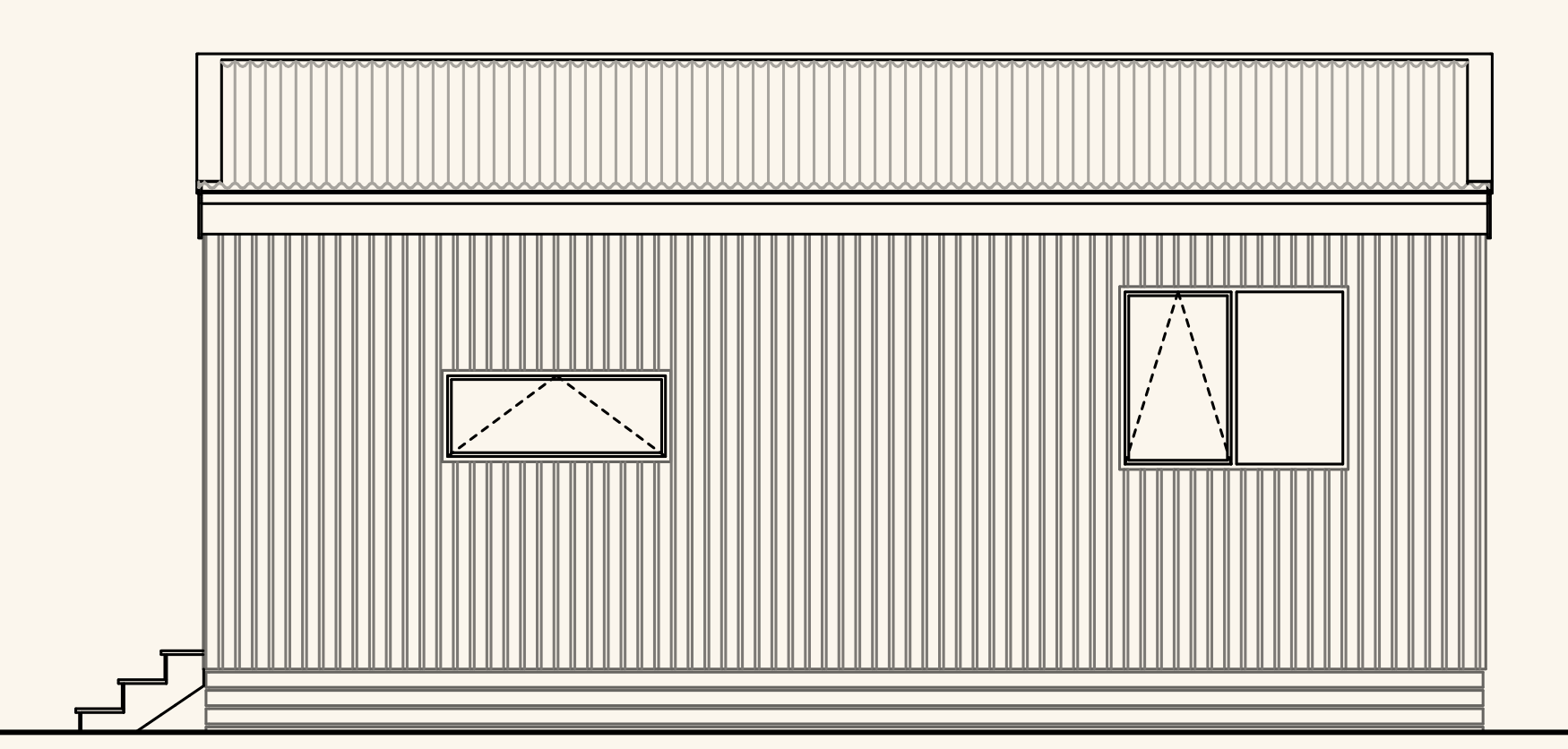

Front elevation

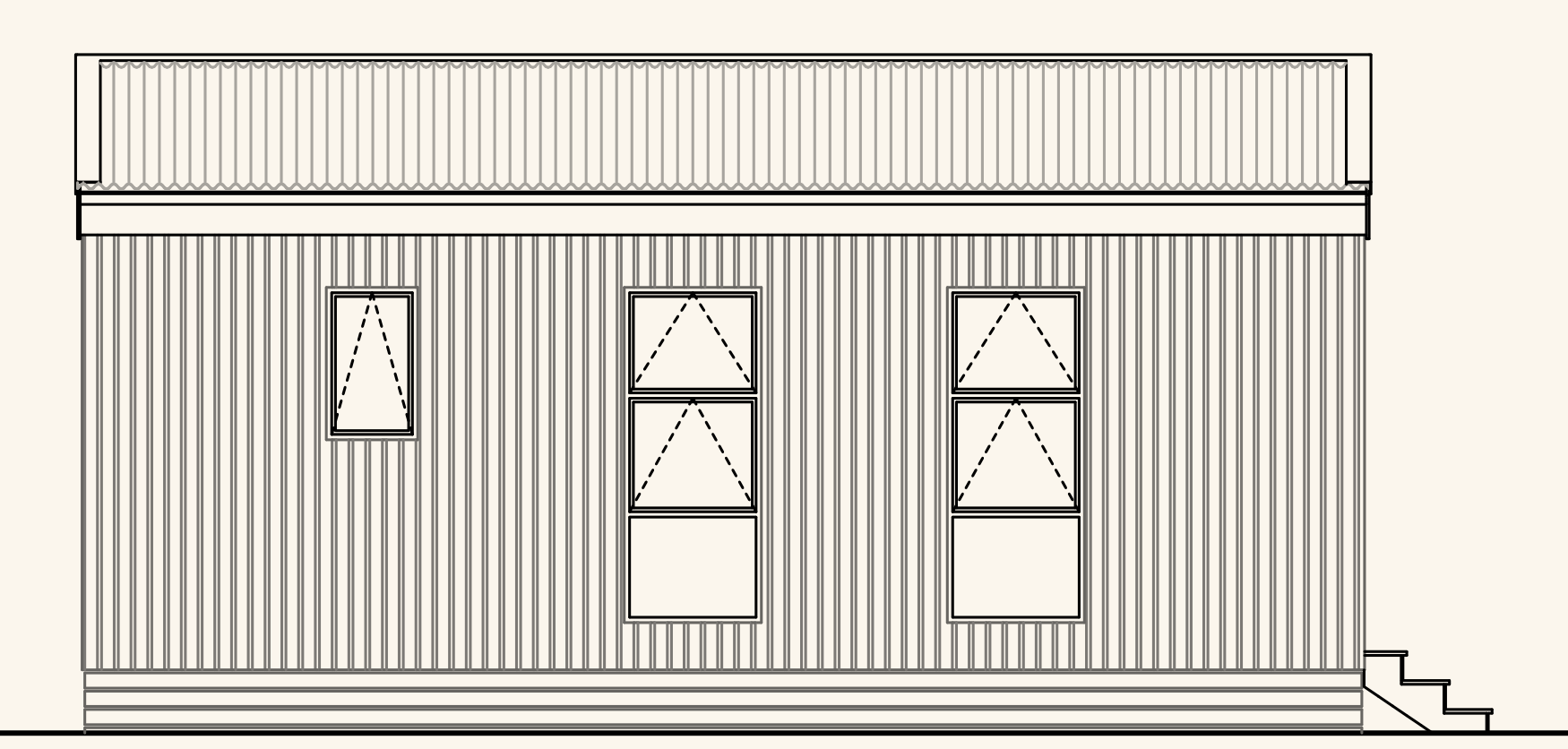

Rear elevation

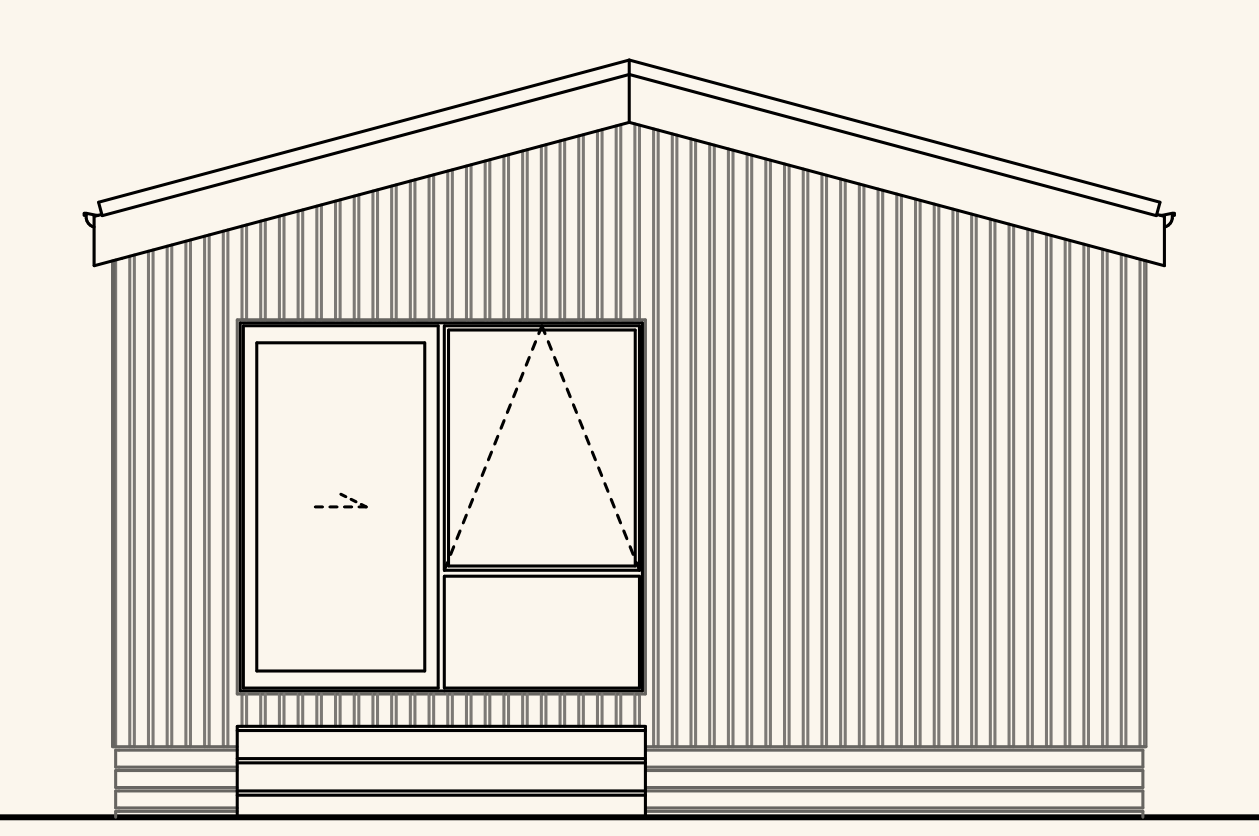

Left elevation

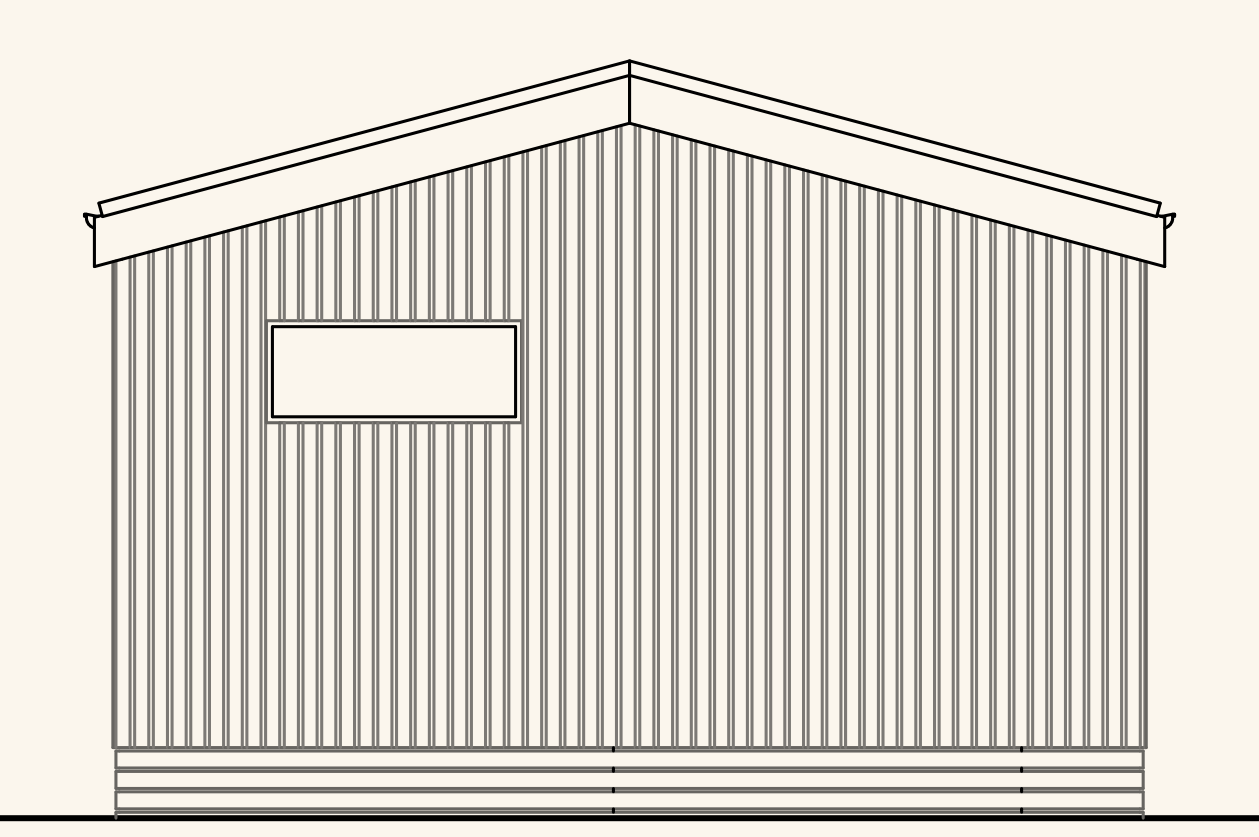

Right elevation

What the price covers

A fully insulated, airtight and weathertight structural building envelope

Everything else is supplied by you or your builder, so you stay in control of the finish and the budget.

Included

Precut Formance® wall, roof and floor SIP panels

Timber and thermal splines for panel joins

Construction consumables: screws, washers, glue, foam and tape

Formance wall, roof and floor underlay, join tape, sill tape and penetration seals

Not included

Freight Cladding, roofing and joinery Foundations and subfloor Services and amenities Installation and labour

Panel build

Walls	R2.8
Roof	R5.7
Floor	R4.3

Build notes

Stud height	2605mm
Roof pitch	15°
Soffit width	50mm
Splines	Walls: 115mm panel, thermal splines Roof: 215mm panel, SG8 splines Floor: 175mm panel, SG8 splines
Panel quantities	Walls: 66m² Roof: 52m² Floor: 50m²

Drawn for a typical Christchurch site (high wind zone, 1 kPa snow load, earthquake zone 2). Your designer confirms the final specification for your site.

Enquire

Enquire about the Kitset 50

Tell us a bit about your project and we'll be in touch with pricing, lead times and next steps for the Kitset 50.

CONTACT FORMANCE

31 King Edward Terrace
Woolston, Christchurch
P: 0800 000 527
E: [email protected]

Kitset plan sets

Floor plan, elevations and full specification for all three plans.

Download

Pricing current as at 28 August 2026. Prices exclude GST and delivery to site. Formance® is a registered trademark of Method Building Systems.
